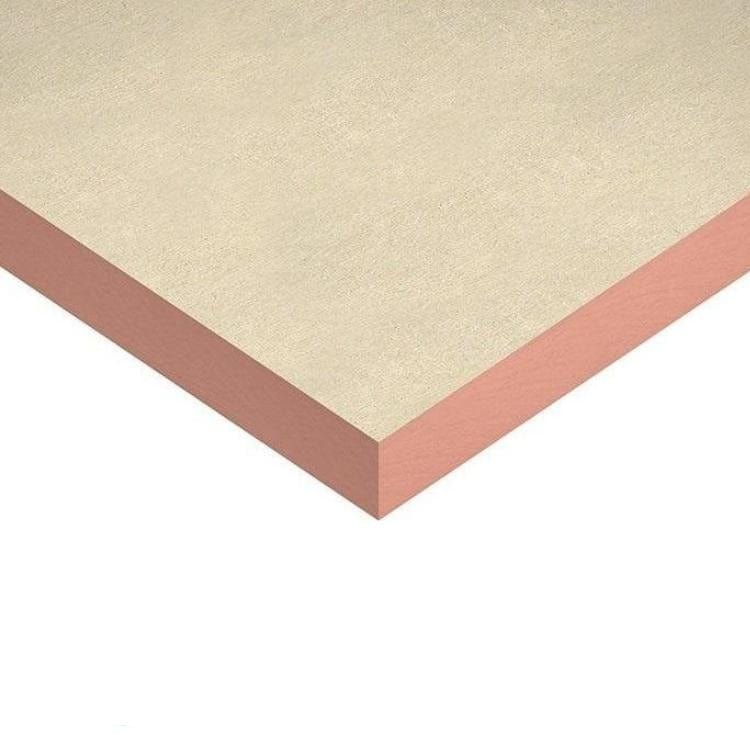

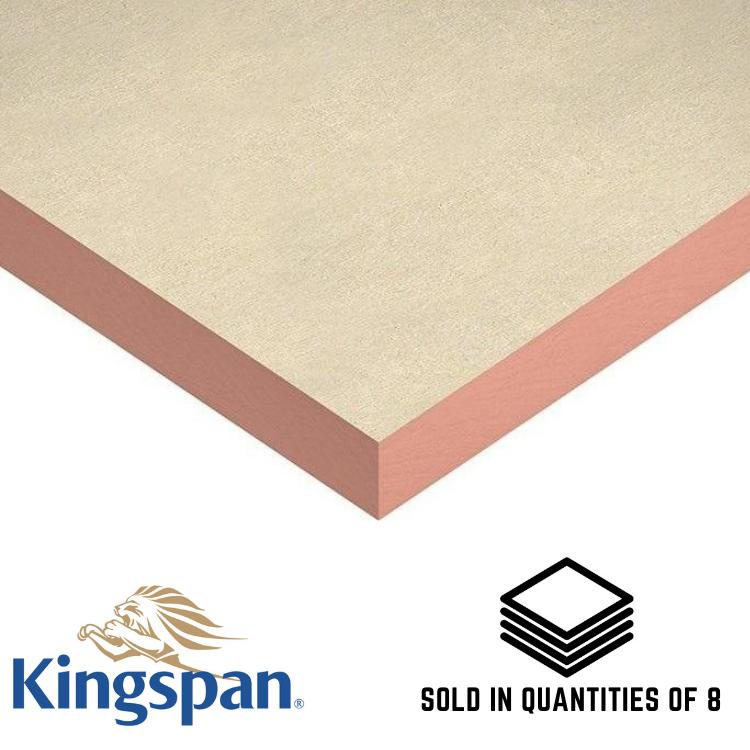

Kingspan Kooltherm K5 External Wall Board 1200 x 600 x 60mm ( 8 Sheets)

Kingspan Kooltherm K5 External Wall Board 1200 x 600 x 60mm ( 8 Sheets)

Specially designed for masonry walls, Kingspan Kooltherm K5 is a premium performance insulation board sets new standards in thermal efficiency, boasting a thermal conductivity as low as 0.021 W/mK.

Its innovative design facilitates extremely thin wall constructions, making it an ideal solution for upgrading the energy efficiency of existing properties externally, with minimal disruption to occupants.

Maximising Space and Comfort

By offering the thinnest profile in External Wall Insulation (EWI), Kingspan Kooltherm K5 preserves valuable internal space while ensuring buildings that cannot be insulated from the inside receive the thermal upgrade they need.

Features and Benefits:

• Space-Efficient Insulation: Achieve high U-values with minimal construction thickness, preserving interior space.

• Versatile Application: Compatible with both traditional and lightweight polymer modified renders, Kooltherm K5 offers flexibility in exterior finishes.

• Easy Installation: Its lightweight nature simplifies transport, handling, and installation, enhancing construction efficiency.

• Property Value Increase: The thin profile of Kooltherm K5 not only improves thermal efficiency but also maximises lettable space, enhancing property value.

• Enhanced Wellbeing: With a fibre-free core, Kooltherm K5 contributes to a healthier indoor environment.

Application

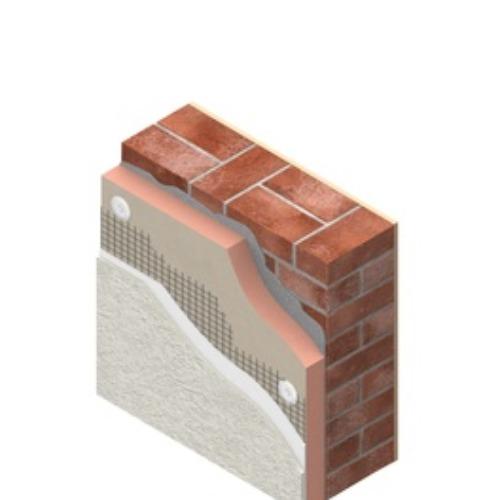

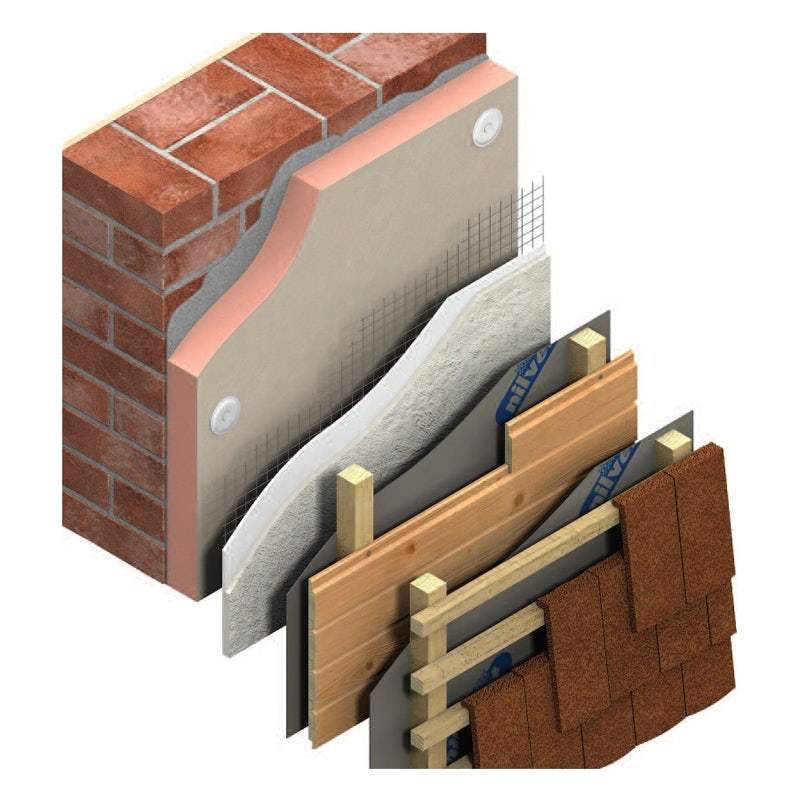

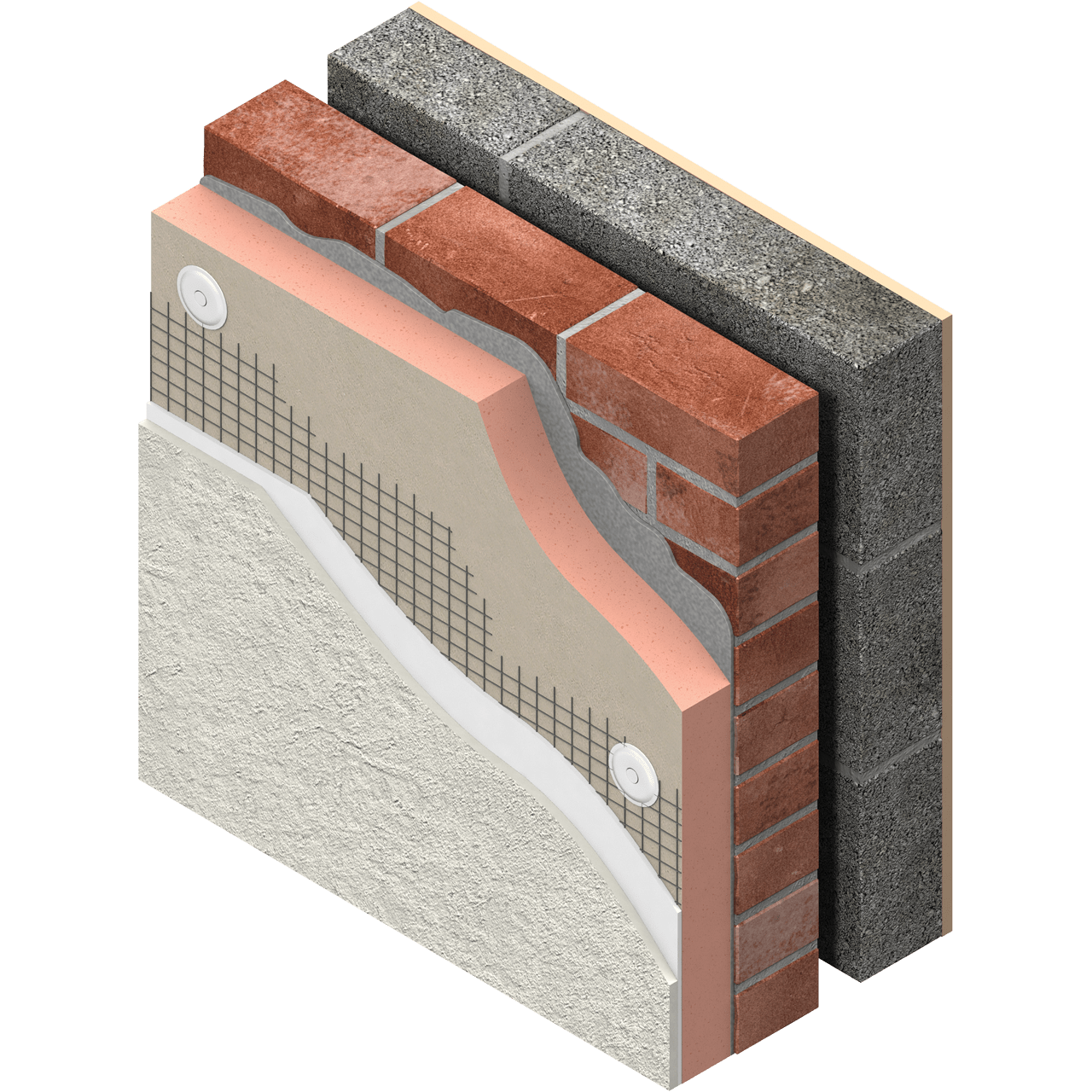

Kooltherm K5 is engineered for external insulation of masonry walls, providing a versatile solution for both new construction and retrofit applications.

Technical Specifications:

• Material: Premium performance, rigid thermoset phenolic insulation for exceptional thermal efficiency.

• Thermal Conductivity: Offers superior insulation with values of 0.022 W/mK (25-44 mm thickness) and 0.021 W/mK (45-100 mm thickness).

• Facings: Equipped with a glass tissue-based facing for enhanced durability and performance.

• Dimensions: Conveniently sized at 600 x 1200mm to fit a wide range of project requirements.

• Thickness Range: 25 - 100 mm, accommodating various insulation needs.

• Fire Performance: Achieves Euroclass C-s2,d0 rating, ensuring safety and compliance.

• Compressive Strength: 100 kPa, indicating strong load-bearing capabilities.

Experience the difference in thermal efficiency, space conservation, and construction ease, all while enhancing the building's value and the wellbeing of its occupants.
